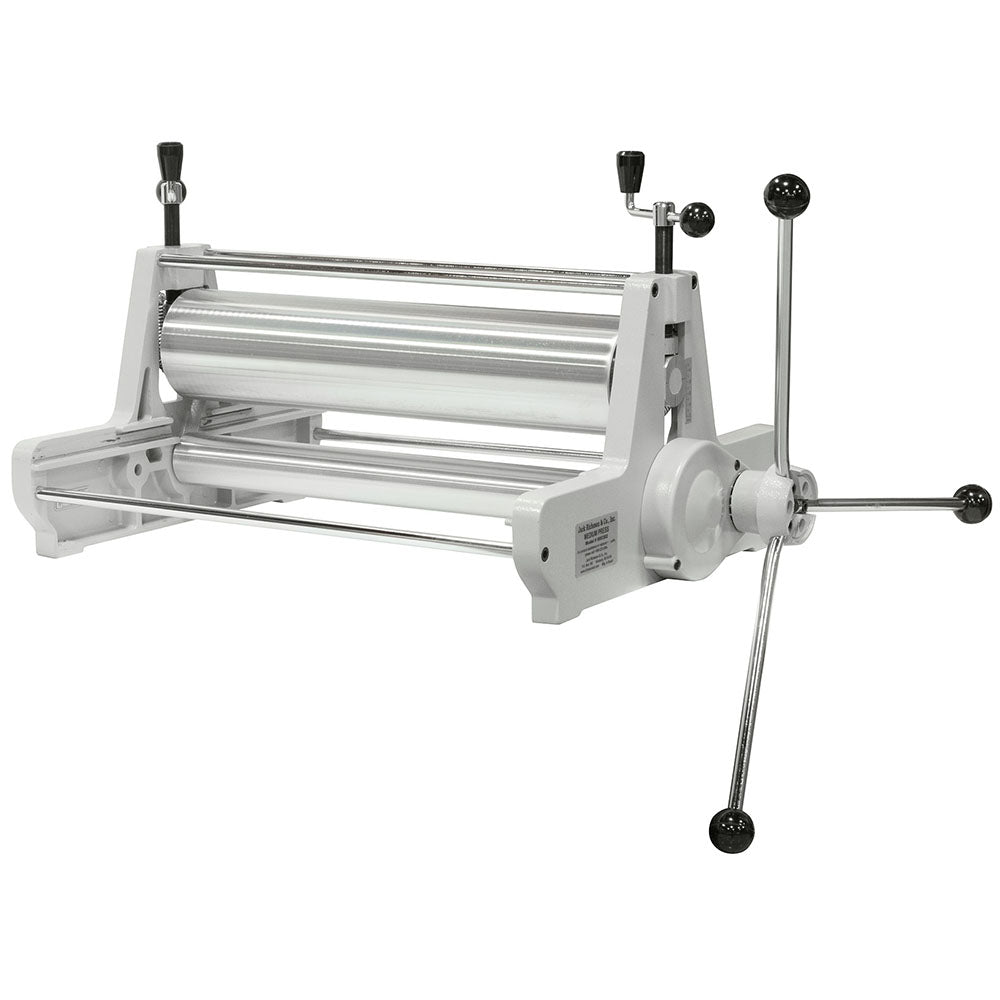

Richeson Medium Geared Press

Maximum print size 432 x 889. Bedplate, cushion blanket, pusher blanket and size catcher blanket included.
Please note: Support stand must be ordered separately
Gearing: Three-point lower roller drive with 2.62:1 reduction ratio.
Bedplate: 12.7mm thick phenolic resin - 498 x 915mm
Cushion Blanket: 6.4mm felt - 457 x 915mm
Rollers: Upper - 114 x 483mm, Lower - 51 x 483mm
Maximum Clearance: Bedplate/Upper Roller (no blanket): 32mm
Base Frame Dimensions: 546 x 762mm
Shipping Weight: 91kg. approx. (excluding stand) “
Support Stand: Colour matched, heavy-duty tubular steel - assembly required.
